High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon

  • High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon
  • High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon
  • High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon
  • High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon
Menşe yeri Çin
Marka adı HTR
Min sipariş miktarı 50 parça
Teslim süresi 90 gün

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Çekim Gücü 790-980 Uzunluk ≥ ((8-12)
Farklı Nominal Dia ≤0.5MM İki Tekerleğin Simetri Derecesi ≤1mm
Jant HB 246-307 Flanş Çapı 861±1
Göbek uzunluğu 155±1 Jant genişliği 130±1
İç/Dış Çember Çapı. 709±1 İç MesafeGöbek ve jant arası 10±1
Vurgulamak

AAR Anti-korroziv tedavi tekerlekleri

,

Anti-corrosive Treatment Wheels
Mesaj bırakın
Ürün Açıklaması

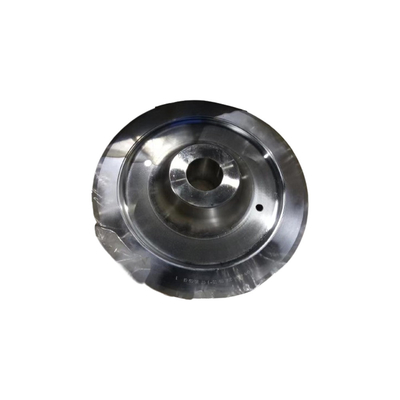

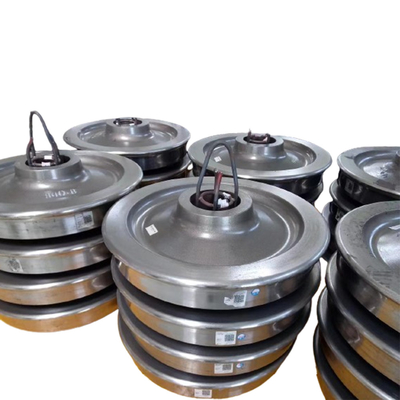

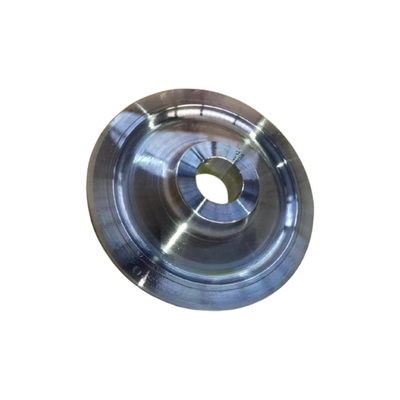

Product View



Train wheels are the key components of railway vehicles, they bear the important role of supporting the body, transferring the load and providing traction. Modern train wheels are usually made of high-strength steel materials to ensure adequate durability and safety.



Product Standard

  • AAR M-107/M-208 WHEELS, CARBON STEEL SPECIFICATION
  • EN 13262 RAILWAY APPLICATIONSWHEELS - PRODUCT REQUIREMENTS
  • BS 5892-3 SPECIFICATION FOR MONOBLOC WHEELS FOR TRACTION AND TRAILING STOCK
  • JIS E5402-2 RAILWAY ROLLING STOCK-SOLID STEEL WHEEL
  • TB/T 2817 TECHNICAL SPECIFICATION OF WROUGHT STEEL SOLID WHEEL FOR RAILWAY FREIGHT CAR

High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon 0



1.Superior Material: Made from special high-strength steel with strict chemical composition control and heat treatment processes, providing excellent wear resistance and fatigue performance.

2.Advanced Design: The wheel design utilizes Computer-Aided Engineering (CAE) technology to optimize the structure of the wheel rim and tread, enhancing load capacity and operational stability.

3.Precision Machining: High-precision CNC machining ensures precise geometric dimensions and superior dynamic balance, reducing vibration and noise during operation.

4.Wear Resistance: The surface undergoes a special hardening treatment to form a robust protective layer, significantly improving the wheels' wear resistance and extending their service life.

5.Safety Performance: Each wheel is subjected to rigorous non-destructive testing and static load testing to ensure there are no defects, maintaining stability and safety during high-speed operation.

6.Environmentally Friendly and Energy-Saving: Optimized design and manufacturing processes reduce energy loss during operation, helping to improve the train's energy efficiency ratio and lower operational costs.

7.Wide Application: Suitable for various types of railway vehicles, including high-speed trains, freight trains, subways, and light rails, meeting the demands of different working conditions.



Product advantage





Certificated with AAR

100% automated Ultrasonic test as well as magnetic particle

Less MOQ requirement

Superior hardness



Product structure



High Quality AAR Anti-corrosive Treatment Wheels for Freight Wagon 1
