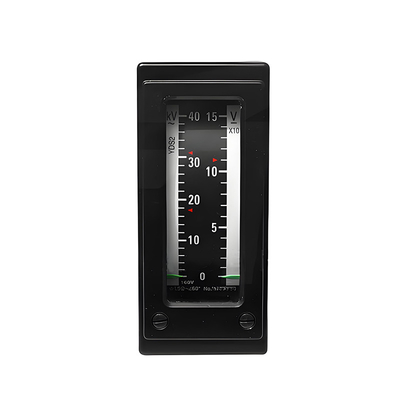

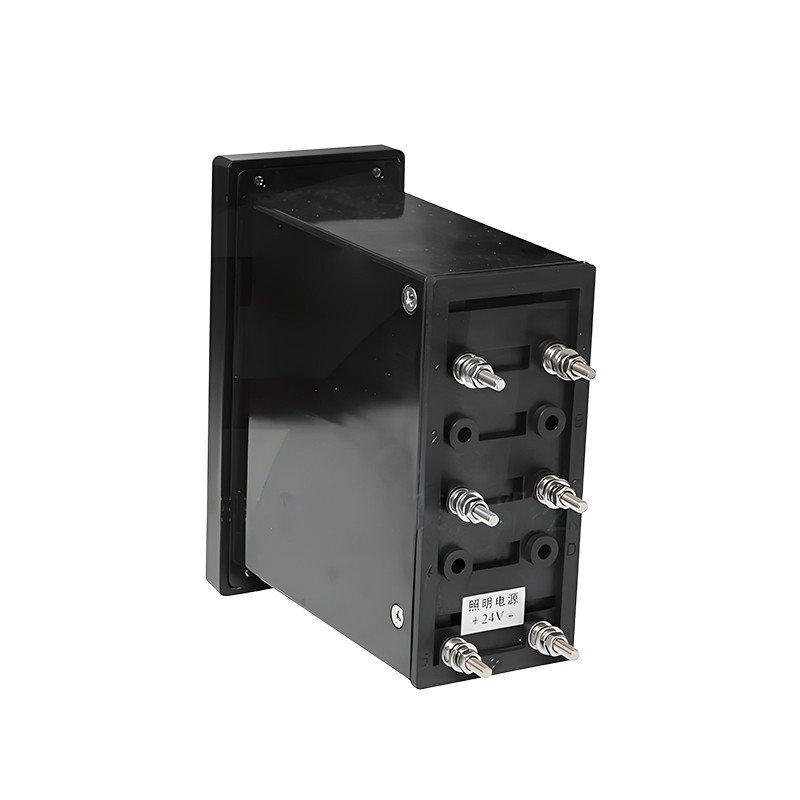

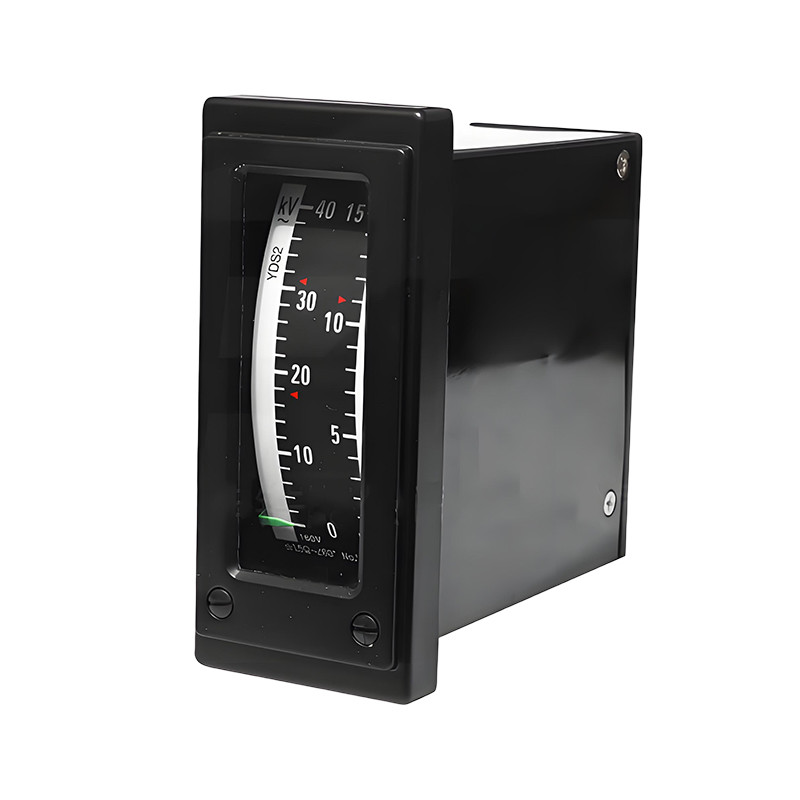

Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge

  • Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge
  • Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge
  • Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge
Place of Origin China
Marka adı HTR
Model Number HTS2
Minimum Order Quantity 10pcs
Fiyat pazarlık edilebilir
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Accuracy Class Class 1.5 (Class 2.5 when used with sensors) Operating Environment -20°C to +50°C
Relative Humidity ≤ 95% Damping Time < 4 seconds
External Magnetic Field Resistance 4 kA/m Vibration Resistance 30 m/s²
Illumination Power Supply DC 24V or DC 110V Protection Type Dustproof
Weight Approx. 1 kg Dimensions 64 mm (W) × 146 mm (H) × 152 mm (D)
Vurgulamak

Locomotive Network Pressure Gauge

,

Dual-needle Network Pressure Gauge

,

HTS2 Network Pressure Gauge
Mesaj bırakın
Ürün Açıklaması

Products Description

The HTS2 Dual-Needle Locomotive Instrument is a panel-mounted analog gauge designed for diesel-electric locomotives. It integrates multiple functions—such as current, voltage, sp eed, temperature, and pressure measurement—into one compact, reliable unit. Built with a magnetoelectric mechanism and a durable phenolic resin housing, it offers  high accuracy, good linearity, and strong resistance to shock, vibration, and external  magnetic fields. The instrument features reverse polarity protection, soft lighting, and long service life, making it ideal for harsh railway environments.


Specification

Item

Specification

Accuracy Class

Class 1.5 (Class 2.5 when used with sensors)

Operating Environment

-20°C to +50°C

Relative Humidity

≤ 95%

Damping Time

< 4 seconds

External Magnetic
Field Resistance

4 kA/m

Vibration Resistance

30 m/s²

Illumination Power
Supply

DC 24V or DC 110V

Protection Type

Dustproof

Weight

Approx. 1 kg

Dimensions

64 mm (W) × 146 mm (H) × 152 mm (D)

Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge 0
