ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
| Menşe yeri | Chongqing, Çin |
|---|---|
| Marka adı | XRD |
| Min sipariş miktarı | 2 |
| Fiyat | $1,370-1,400 |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Güç voltajı | Üç fazlı AC 380V/50Hz | Vuruş | 220/170/150mm |
|---|---|---|---|
| Nominal atma kuvveti | 2,5 kN - 4.5 kN | İzlenebilir Kuvvet | 28 ± 2KN |
| Atma Zamanı | ≤ 8s | Çalışma Akımı | ≤2.0A |
| Tek satırlık direnç | ≤ 54Ω | Yalıtım direnci | > 25mΩ |
| Yalıtım voltajı dayanıklı | 50Hz | Atmosfer basıncı | ≥70kpa (rakım 3000m'yi aşmıyor) |
| Ortam sıcaklığı | -40 ℃～ +70 ℃ | Göreceli nem | ≤%90 (25°C) |
| Hizmet ömrü | 1 milyon kat atma hareketi (veya 15 yıl) | Ağırlık | 140kg |
| Vurgulamak | ZDJ9 railway electric switch machine,380V railway track switch,2.5-4.5 kN force switch machine |
||
Ürün Açıklaması
Excellent Performance Railway ZD9/ZDJ9 Series Electric Switch Machine
Product Attributes
| Attribute | Value |
|---|---|
| Purpose | for retrofit/upgrade |
| Condition | New |
| Type | Electric Switch Machine |
| Material | Steel |
| Dimensions (L x W x H) (mm) | Customized |
| Product Name | Electric Switch Machine |
| Power Voltage | Three-phase AC 380V/50Hz |
| Strokes | 220/170/150mm |
| Rated Throwing Force | 2.5 kN - 4.5 kN |
| Trailable Force | 28±2KN |
| Throwing Time | ≤ 8s |
| Work Current | ≤2.0A |
| Single-line Resistance | ≤ 54Ω |
| Insulation Resistance | >25MΩ |
| Insulation Voltage Withstand | 50Hz |

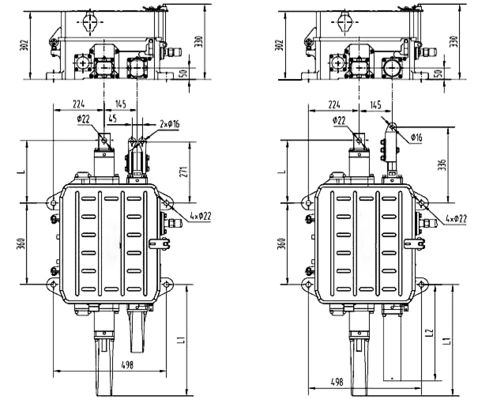

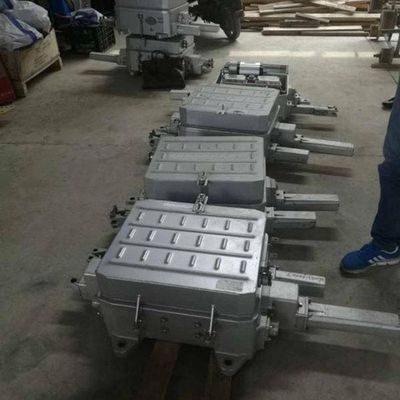

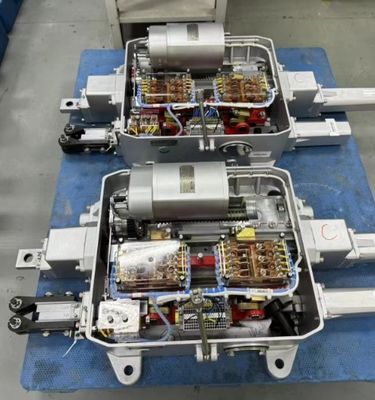

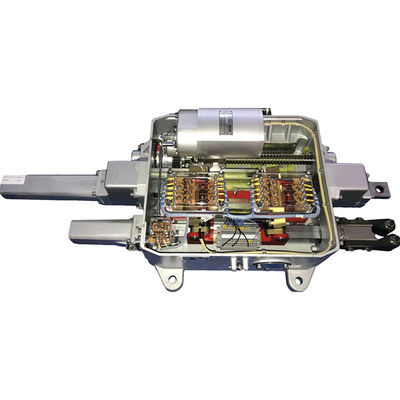

Product Images
Technical Specifications
| Product Performance | Reference Value |
|---|---|
| Power Voltage | Three-phase AC 380V/50Hz |
| Strokes | 220/170/150mm |
| Rated Throwing Force | 2.5 kN - 4.5 kN |
| Trailable Force | 28±2KN |
| Throwing Time | ≤ 8s |
| Work Current | ≤2.0A |
| Single-line Resistance | ≤ 54Ω |
| Insulation Resistance | ＞25MΩ |
| Insulation Voltage Withstand | 50Hz |
| Protection Class | IP54-IP67 |
| Atmospheric Pressure | ≥70KPa (altitude not exceeding 3000m) |
| Ambient Temperature | -40℃～ +70℃ |
| Relative Humidity | ≤90%（25℃） |
| Service Life | The point machine meets the requirement of 1 million times of throwing movement (or 15 years) under the condition of regular maintenance |
| Weight | The whole machine weight about 140kg |
Product Description

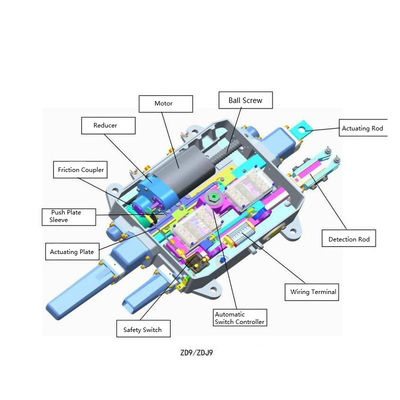

ZDJ9 series switch point machines are suitable for the setting, locking and indication of various railway switches. It can be used by single machine or multiple machines. It can be used for an internal-locking switch or an external-locking switch. ZDJ9 series point machines only refer to the structure and accessories installed in the housing which can complete the action of throw bar, pull-in conversion and lock, excluding installation device. Installation device is a set of parts for installing the point machine and connecting the point machine with the movable parts of the switch.
For the railway with the speed above 120kph, ZD9/ZDJ9 point machine shall be equipped with external locking device.
Additional Product Images
About Chongqing XinRail Technology Co., Ltd.
Your Trusted Partner for Premium Track Accessories. We specialize in providing top-quality products and innovative solutions for the railway and rail transit industries. Since our inception, we've been dedicated to enhancing the efficiency and safety of track systems worldwide with reliable products and exceptional service.
Our Advantages
- Superior Quality Control - Ensuring products meet the highest standards
- Highly Competitive Prices - Get the best value for your investment
- Cutting-Edge Technology - State-of-the-art products for modern living
- Expert Team - Professional and passionate about lifestyle electronics
- Seamless Communication - Smooth, responsive, and easy to work with
- Effective OEM & ODM Services - Tailored solutions to meet your unique needs
Our Mission
Our mission is to advance the safety and efficiency of the rail transit industry by providing excellent track accessories and services. We are dedicated to being a reliable partner for our clients, together facing future challenges and opportunities.
Please feel free to contact us for more information. We look forward to working with you and contributing to the development of the rail transit industry!
Company Images
Frequently Asked Questions
What are the main factors to consider when selecting track accessories?
When selecting track accessories, key factors include: Compatibility: Ensure the accessories match the specifications of your existing track system. Quality Standards: Look for products that meet international quality and safety standards. Durability: Consider the environmental conditions and load requirements to choose durable materials. Cost-effectiveness: Balance cost with the long-term performance and maintenance requirements of the accessories.
How do you ensure the quality of your products?
We ensure product quality through: Rigorous Testing: All products undergo thorough testing and quality control procedures. Certified Manufacturers: We source our products from internationally recognized manufacturers with proven track records. Compliance: Our products comply with industry standards and regulations to guarantee performance and safety.
Can you provide customized solutions for specific projects?
Yes, we offer customized solutions tailored to specific project requirements. Our team of experts can work with you to understand your needs and provide tailored products and solutions to meet your project's specifications.
Do you offer technical support and after-sales service?
Yes, we provide comprehensive technical support and after-sales service. Our team is available to assist with installation, maintenance, and troubleshooting to ensure the optimal performance of our products.
Do you ship internationally?
Yes, we offer international shipping to a wide range of countries. Shipping costs and arrangements will be provided based on the destination and order details.
